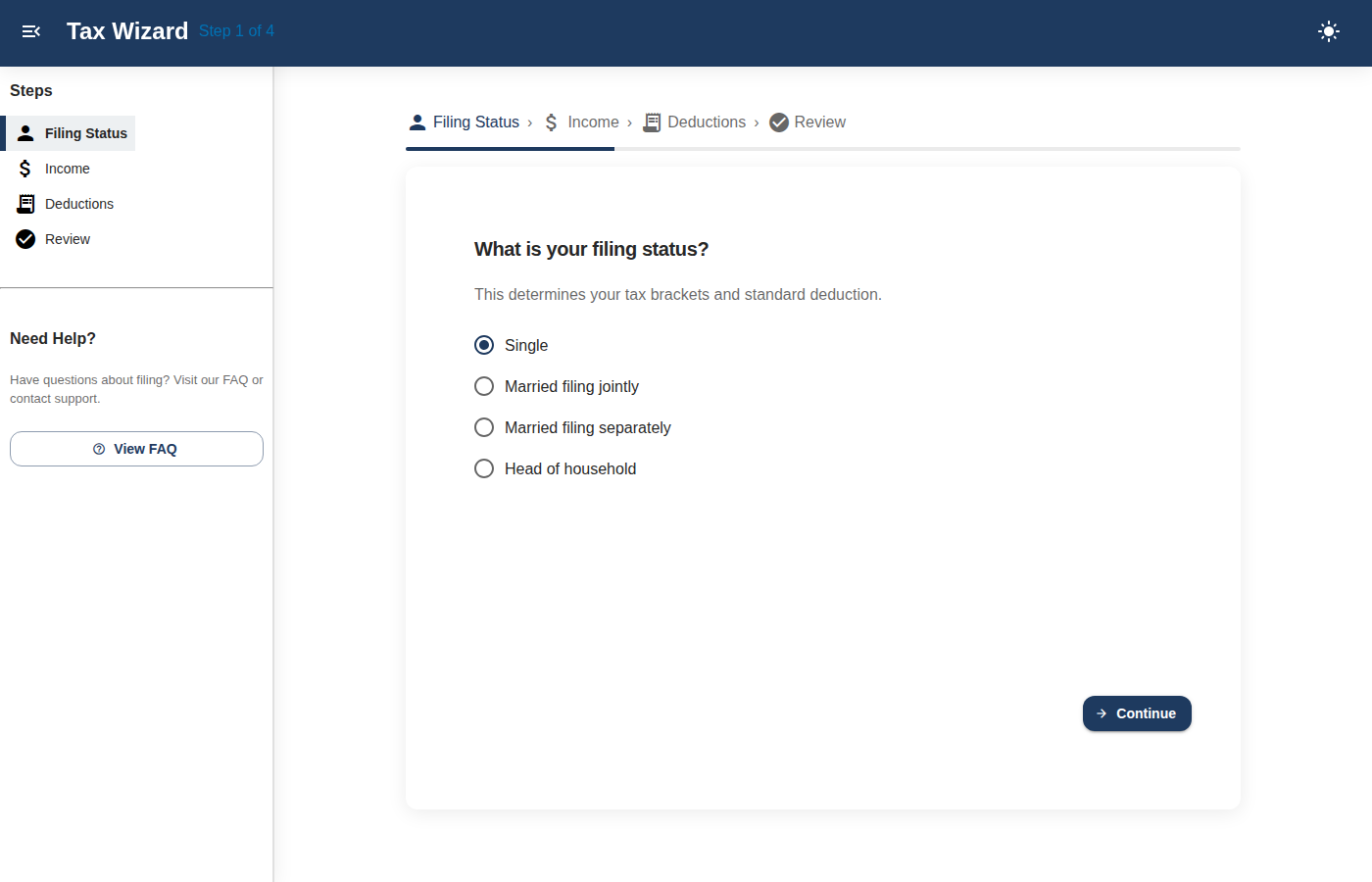

Wizard/stepper layout example using panel-material-ui.
Multi-step wizard with one action per page, breadcrumb navigation, sidebar
menu, and a progress bar. Demonstrates Viewer class pattern, Placeholder
swapping, pn.io.hold() batching, shared disabled state, and pmui.Page template.
Run: panel serve examples/wizard.py --dev --show
"""
import panel as pn
import panel_material_ui as pmui
import param
pn.extension(throttled=True, defer_load=True, loading_indicator=True)
# Professional theme - refined indigo/teal palette
THEME_CONFIG = {
"light": {
"palette": {
"primary": {"main": "#1e3a5f"}, # Deep navy blue
"secondary": {"main": "#2e7d6f"}, # Teal accent
"success": {"main": "#2e7d6f"},
},
"typography": {
"fontFamily": "Inter, -apple-system, BlinkMacSystemFont, sans-serif",
"h4": {"fontWeight": 600, "letterSpacing": "-0.02em"},
"h5": {"fontWeight": 600, "letterSpacing": "-0.01em"},
"body1": {"lineHeight": 1.6},
},
"shape": {"borderRadius": 12},
"components": {
"MuiButton": {
"styleOverrides": {
"root": {"textTransform": "none", "fontWeight": 600},
},
},
"MuiPaper": {
"styleOverrides": {
"root": {"boxShadow": "0 4px 20px rgba(0,0,0,0.08)"},
},
},
},
},
"dark": {
"palette": {
"primary": {"main": "#5c8fc2"},
"secondary": {"main": "#4db6a4"},
"success": {"main": "#4db6a4"},
},
"typography": {
"fontFamily": "Inter, -apple-system, BlinkMacSystemFont, sans-serif",
"h4": {"fontWeight": 600, "letterSpacing": "-0.02em"},
"h5": {"fontWeight": 600, "letterSpacing": "-0.01em"},
"body1": {"lineHeight": 1.6},
},
"shape": {"borderRadius": 12},
"components": {
"MuiButton": {
"styleOverrides": {
"root": {"textTransform": "none", "fontWeight": 600},
},
},
},
},
}
class WizardStep(pn.viewable.Viewer):
"""Base class for wizard steps."""
complete = param.Boolean(default=False, doc="""
Whether this step has valid data and can proceed.""")
disabled = param.Boolean(default=False, doc="""
Whether this step's widgets are disabled (e.g., after submit).""")
icon = param.String(default="circle", doc="""
Material icon name for breadcrumbs and sidebar.""")
title = param.String(doc="""
Display title for this step.""")
def __panel__(self):
raise NotImplementedError("Subclasses must implement __panel__")
class FilingStatusStep(WizardStep):
"""Step 1: Filing status selection."""
complete = param.Boolean(default=True)
filing_status = param.Selector(
default="Single",
objects=["Single", "Married filing jointly", "Married filing separately", "Head of household"],
doc="""
Your tax filing status.""",
)
icon = param.String(default="person")
title = param.String(default="Filing Status")
def __panel__(self):
return pmui.Column(
pmui.Typography("What is your filing status?", variant="h4", sx={"fontWeight": 700, "mb": 1}),
pmui.Typography(
"This determines your tax brackets and standard deduction.",
sx={"color": "text.secondary", "mb": 4},
),
pmui.RadioBoxGroup.from_param(
self.param.filing_status,
label="", # Remove redundant label
options=["Single", "Married filing jointly", "Married filing separately", "Head of household"],
disabled=self.param.disabled,
),
sizing_mode="stretch_width",
)
class IncomeStep(WizardStep):
"""Step 2: Income input."""
icon = param.String(default="attach_money")
interest = param.Number(default=0, bounds=(0, None), doc="""
Interest and dividend income from 1099 forms.""")
title = param.String(default="Income")
wages = param.Number(default=0, bounds=(0, None), doc="""
W-2 wages from Box 1.""")
@param.depends("wages", "interest", watch=True)
def _on_income_change(self):
self.complete = (self.wages + self.interest) > 0
def __panel__(self):
return pmui.Column(
pmui.Typography("What did you earn this year?", variant="h4", sx={"fontWeight": 600, "mb": 1}),
pmui.Typography(
"Enter your total income from all sources. We'll use this to calculate your tax bracket.",
sx={"color": "text.secondary", "mb": 4},
),
pmui.Column(
pmui.Typography("W-2 Wages", sx={"fontWeight": 500, "mb": 1}),
pmui.FloatInput.from_param(self.param.wages, label="$ Wages", sizing_mode="stretch_width", disabled=self.param.disabled),
pmui.Typography("From Box 1 of your W-2 form", sx={"color": "text.secondary", "fontSize": 13, "mt": 0.5}),
sizing_mode="stretch_width",
margin=(0, 0, 24, 0),
),
pmui.Column(
pmui.Typography("Interest & Dividends", sx={"fontWeight": 500, "mb": 1}),
pmui.FloatInput.from_param(self.param.interest, label="$ Interest", sizing_mode="stretch_width", disabled=self.param.disabled),
pmui.Typography("From 1099-INT and 1099-DIV forms", sx={"color": "text.secondary", "fontSize": 13, "mt": 0.5}),
sizing_mode="stretch_width",
),
sizing_mode="stretch_width",
)
class DeductionsStep(WizardStep):
"""Step 3: Deductions."""
complete = param.Boolean(default=True)
deduction_type = param.Selector(
default="Standard",
objects=["Standard", "Itemized"],
doc="""
Standard or itemized deduction.""",
)
icon = param.String(default="receipt_long")
itemized_amount = param.Number(default=0, bounds=(0, None), doc="""
Total itemized deductions if not using standard.""")
title = param.String(default="Deductions")
def __init__(self, **params):
self._itemized_input = pmui.FloatInput.from_param(
self.param.itemized_amount,
label="Itemized Amount ($)",
sizing_mode="stretch_width",
disabled=self.param.disabled,
)
self._standard_info = pmui.Paper(
pmui.Typography(
"Standard deduction: $14,600 (Single) / $29,200 (Married)",
sx={"color": "text.secondary"},
),
sx={"p": 2, "mt": 2, "backgroundColor": "rgba(0,0,0,0.02)"},
)
self._deduction_details = pn.pane.Placeholder(sizing_mode="stretch_width")
super().__init__(**params)
@param.depends("deduction_type", watch=True, on_init=True)
def _update_deduction_details(self):
if self.deduction_type == "Itemized":
self._deduction_details.update(self._itemized_input)
else:
self._deduction_details.update(self._standard_info)
def __panel__(self):
return pmui.Column(
pmui.Typography("Choose your deduction", variant="h4", sx={"fontWeight": 600, "mb": 1}),
pmui.Typography(
"Most filers benefit from the standard deduction.",
sx={"color": "text.secondary", "mb": 4},
),
pmui.RadioButtonGroup.from_param(self.param.deduction_type, disabled=self.param.disabled),
self._deduction_details,
sizing_mode="stretch_width",
)
class ReviewStep(WizardStep):
"""Step 4: Review and submit."""
complete = param.Boolean(default=True)
icon = param.String(default="check_circle")
title = param.String(default="Review")
def __init__(self, steps, **params):
super().__init__(**params)
self._steps = steps
def __panel__(self):
filing = self._steps[0]
income = self._steps[1]
deductions = self._steps[2]
total_income = income.wages + income.interest
deduction_amount = 14600 if filing.filing_status == "Single" else 29200
if deductions.deduction_type == "Itemized":
deduction_amount = deductions.itemized_amount
taxable = max(0, total_income - deduction_amount)
return pmui.Column(
pmui.Typography("Review your return", variant="h4", sx={"fontWeight": 600, "mb": 1}),
pmui.Typography(
"Please confirm your information before submitting.",
sx={"color": "text.secondary", "mb": 3},
),
pmui.Paper(
pmui.Column(
pmui.Row(
pmui.Typography("Filing Status", sx={"color": "text.secondary", "minWidth": 140}),
pmui.Typography(filing.filing_status or "Not selected", sx={"fontWeight": 500}),
),
pmui.Row(
pmui.Typography("W-2 Wages", sx={"color": "text.secondary", "minWidth": 140}),
pmui.Typography(f"${income.wages:,.2f}", sx={"fontWeight": 500}),
),
pmui.Row(
pmui.Typography("Interest Income", sx={"color": "text.secondary", "minWidth": 140}),
pmui.Typography(f"${income.interest:,.2f}", sx={"fontWeight": 500}),
),
pmui.Row(
pmui.Typography("Deduction", sx={"color": "text.secondary", "minWidth": 140}),
pmui.Typography(f"{deductions.deduction_type} (${deduction_amount:,.0f})", sx={"fontWeight": 500}),
),
pn.layout.Divider(margin=(16, 0)),
pmui.Row(
pmui.Typography("Taxable Income", sx={"fontWeight": 600, "minWidth": 140}),
pmui.Typography(f"${taxable:,.2f}", sx={"fontWeight": 600, "color": "primary.main"}),
),
sizing_mode="stretch_width",
),
sx={"p": 3},
),
sizing_mode="stretch_width",
)
class TaxWizard(pn.viewable.Viewer):
"""TurboTax-style wizard with one action per page."""
active_step = param.Integer(default=0, bounds=(0, None), doc="""
Current step index (0-based).""")
submitted = param.Boolean(default=False, doc="""
Whether the wizard has been submitted.""")
def __init__(self, **params):
# Step instances
self._filing_step = FilingStatusStep()
self._income_step = IncomeStep()
self._deductions_step = DeductionsStep()
self._review_step = ReviewStep(
steps=[self._filing_step, self._income_step, self._deductions_step]
)
self._steps = [
self._filing_step,
self._income_step,
self._deductions_step,
self._review_step,
]
# Components
self._breadcrumb_items = [
{"label": step.title, "icon": step.icon, "view": step}
for step in self._steps
]
self._breadcrumbs = pmui.Breadcrumbs(
items=self._breadcrumb_items,
active=0,
color="primary",
separator="›",
sizing_mode="stretch_width",
)
self._back_btn = pmui.Button(
label="Back",
icon="arrow_back",
variant="outlined",
visible=False,
)
self._next_btn = pmui.Button(
label="Continue",
icon="arrow_forward",
variant="contained",
color="primary",
)
self._content = pn.pane.Placeholder(sizing_mode="stretch_width", min_height=450, margin=20)
self._progress_bar = pmui.LinearProgress(
value=25,
sizing_mode="stretch_width",
margin=(12, 0, 0, 0),
sx={
"height": 4,
"borderRadius": 2,
"backgroundColor": "rgba(0,0,0,0.08)",
},
)
self._nav_menu = pmui.MenuList(
items=[{"label": step.title, "icon": step.icon} for step in self._steps],
active=0,
color="primary",
highlight=True,
)
self._nav_row = pmui.Row(
self._back_btn,
pn.layout.HSpacer(),
self._next_btn,
sizing_mode="stretch_width",
)
self._step_text = pmui.Typography(
f"Step 1 of {len(self._steps)}",
sx={"color": "primary.contrastText"},
)
# Wire up events and syncs
self._breadcrumbs.on_click(self._on_breadcrumb_click)
self._back_btn.on_click(self._on_back)
self._next_btn.on_click(self._on_advance)
self._nav_menu.param.watch(self._on_menu_select, "active")
for step in self._steps:
step.param.watch(self._update_button_state, "complete")
super().__init__(**params)
def _on_menu_select(self, event):
active = event.new
if active and active[0] != self.active_step:
self.active_step = active[0]
def _on_breadcrumb_click(self, event):
clicked_label = event.get("label") if isinstance(event, dict) else getattr(event, "label", None)
if not clicked_label:
return
for i, item in enumerate(self._breadcrumb_items):
if item["label"] == clicked_label:
self.active_step = i
return
def _on_back(self, event=None):
if self.active_step > 0:
self.active_step = self.active_step - 1
def _on_advance(self, event=None):
if self.active_step < len(self._steps) - 1:
self.active_step = self.active_step + 1
else:
self._submit()
def _submit(self):
self.submitted = True
self._content.update(
pmui.Column(
pmui.Typography("Your return has been submitted!", variant="h4", sx={"fontWeight": 700, "mb": 2}),
pmui.Typography(
"Thank you for using Tax Wizard. You will receive a confirmation email shortly.",
sx={"color": "text.secondary"},
),
sizing_mode="stretch_width",
)
)
with pn.io.hold():
self._next_btn.visible = False
self._back_btn.visible = False
self._breadcrumbs.visible = False
for step in self._steps:
step.disabled = True
def _update_button_state(self, *args):
current_step = self._steps[self.active_step]
self._next_btn.disabled = not current_step.complete
@param.depends("active_step", watch=True, on_init=True)
def _update_view(self):
with pn.io.hold():
self._breadcrumbs.active = self.active_step
current_step = self._steps[self.active_step]
is_first = self.active_step == 0
is_last = self.active_step == len(self._steps) - 1
self._back_btn.visible = not is_first and not self.submitted
self._next_btn.label = "Submit" if is_last else "Continue"
self._next_btn.disabled = not current_step.complete
self._content.update(current_step)
self._nav_menu.active = (self.active_step,)
self._progress_bar.value = int(((self.active_step + 1) / len(self._steps)) * 100)
self._step_text.object = f"Step {self.active_step + 1} of {len(self._steps)}"
def __panel__(self):
if pn.state.served:
return pmui.Page(
title="Tax Wizard",
header=[self._step_text],
sidebar=[
pmui.Typography("Steps", variant="h6", sx={"mb": 1}),
pmui.Column(self._nav_menu, sizing_mode="stretch_width"),
pn.layout.Divider(margin=(20, 0)),
pmui.Typography("Need Help?", variant="h6", sx={"mb": 1}),
pmui.Typography(
"Have questions about filing? Visit our FAQ or contact support.",
sx={"color": "text.secondary", "fontSize": 13},
),
pmui.Button(
label="View FAQ",
icon="help_outline",
variant="outlined",
sizing_mode="stretch_width",
margin=(15, 10, 0, 10),
),
],
sidebar_width=280,
theme_config=THEME_CONFIG,
main=[
pmui.Container(
pmui.Column(
self._breadcrumbs,
self._progress_bar,
pmui.Paper(
pmui.Column(
self._content,
self._nav_row,
sizing_mode="stretch_width",
margin=(0, 0, 30, 0),
),
sx={"p": 5, "mt": 2},
sizing_mode="stretch_width",
),
sizing_mode="stretch_width",
margin=(40, 0, 0, 0),
),
width_option="md",
)
],
)
return pmui.Column(self._breadcrumbs, self._content, self._nav_row)
TaxWizard().servable()
