Building a Dashboard with YAML

Build a complete Lumen dashboard using YAML specifications. This tutorial creates an interactive penguin data explorer with filters and multiple visualizations.

Final result

Build dashboard final result

Time: 15 minutes

What you'll build

An interactive dashboard with filtering, multiple chart types, and responsive layout. The tutorial follows nine steps:

  1. Create a YAML file - Set up the specification
  2. Add a data source - Load the Palmer Penguins dataset
  3. Add a table view - Display raw data
  4. Create a plot - Basic visualization
  5. Configure a scatter plot - Specific axes and colors
  6. Add filters and transforms - Interactive filtering and column selection
  7. Add multiple views - Histogram and table alongside scatter plot
  8. Improve the layout - Responsive sizing and positioning
  9. Add title and theme - Final polish

Each step shows the YAML code and resulting output.

Prerequisites

Install Lumen:

pip install lumen

Why YAML specs?

Lumen AI generates these specs automatically through conversation. Learn specs to:

  • Customize AI outputs
  • Version control dashboards
  • Understand how Lumen works
  • Access features not yet in AI

Prefer AI? See Using Lumen AI instead.

1. Create a YAML file

Create penguins.yaml in your text editor.

Time: 30 seconds

2. Add a data source

Load the Palmer Penguins dataset:

penguins.yaml
1
2
3
4
5
sources:
  penguin_source: # (1)!
    type: file # (2)!
    tables:
      penguin_table: https://datasets.holoviz.org/penguins/v1/penguins.csv # (3)!
  1. Source name - reference this in layouts
  2. File type handles CSV, Parquet, JSON
  3. Remote URL or local file path

Launch the dashboard:

lumen serve penguins.yaml --show --autoreload

The --autoreload flag refreshes automatically when you save changes.

Your browser opens, but the dashboard is empty—you haven't added views yet.

Time: 2 minutes

3. Add a table view

Display the raw data:

penguins.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
sources:
  penguin_source:
    type: file
    tables:
      penguin_table: https://datasets.holoviz.org/penguins/v1/penguins.csv

layouts:
  - title: Penguins
    source: penguin_source
    views:
      - type: table
        table: penguin_table

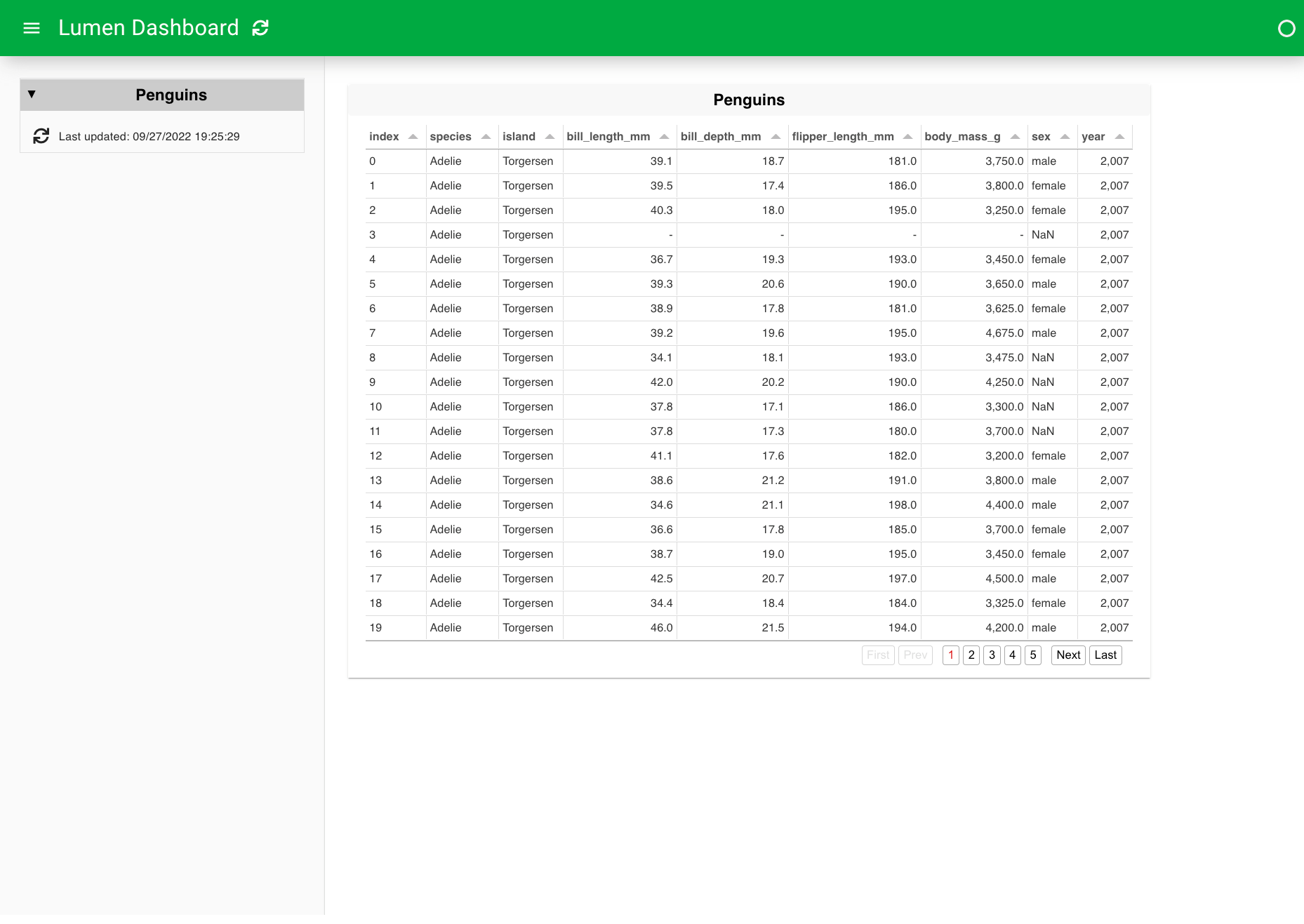

Table view added

The table shows all columns. Note the column names for later plots.

Time: 3 minutes

4. Create a plot

Replace the table with a plot:

penguins.yaml
sources:
  penguin_source:
    type: file
    tables:
      penguin_table: https://datasets.holoviz.org/penguins/v1/penguins.csv

layouts:
  - title: Penguins
    source: penguin_source
    views:
      - type: hvplot # (1)!
        table: penguin_table
  1. hvPlot automatically chooses visualization

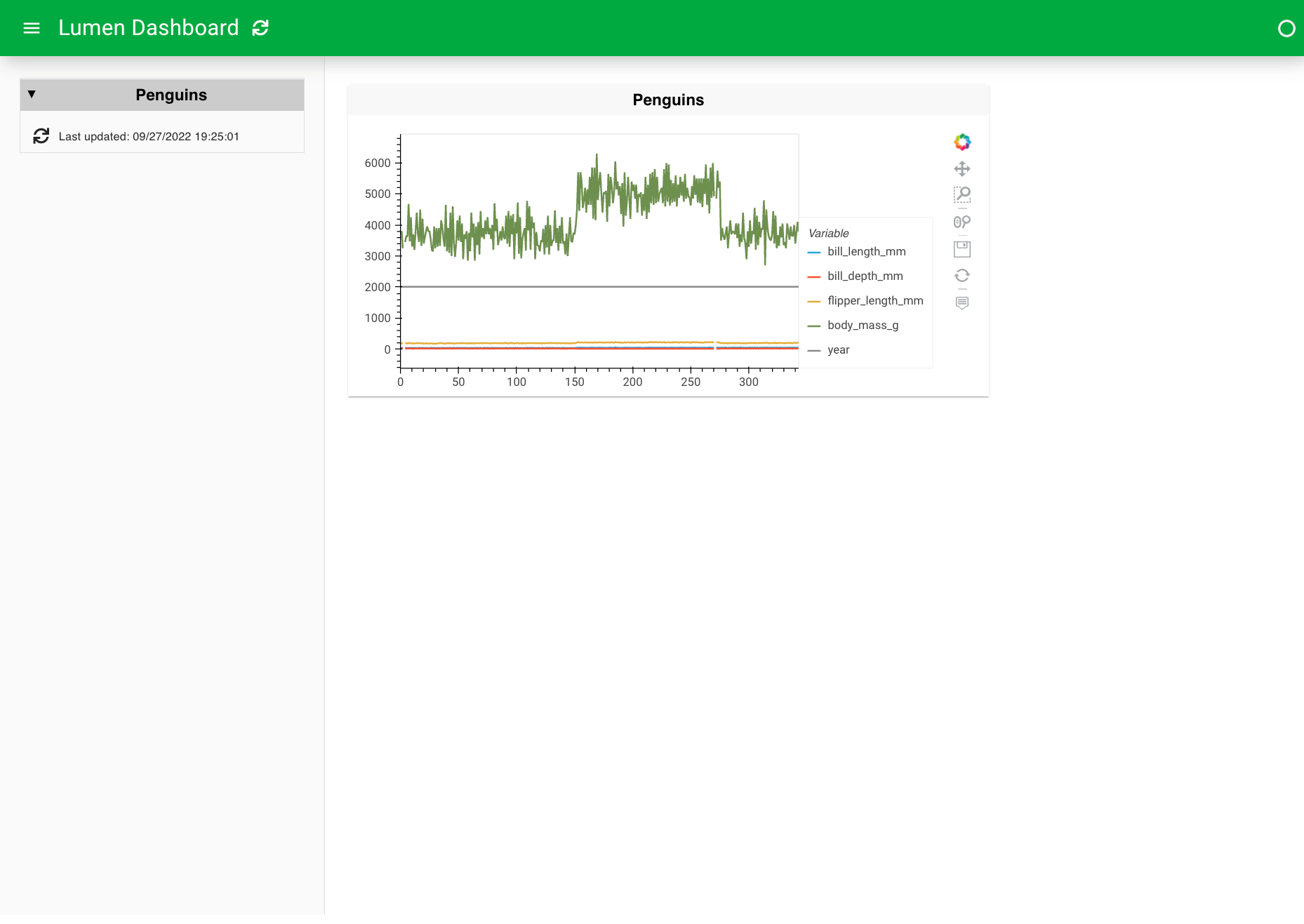

hvPlot view added

This default plot shows too much. Let's make it specific.

Time: 4 minutes

5. Configure a scatter plot

Create a scatter plot with specific axes:

penguins.yaml
sources:
  penguin_source:
    type: file
    tables:
      penguin_table: https://datasets.holoviz.org/penguins/v1/penguins.csv

layouts:
  - title: Penguins
    source: penguin_source
    views:
      - type: hvplot
        table: penguin_table
        kind: scatter # (1)!
        x: bill_length_mm # (2)!
        y: bill_depth_mm
        color: species # (3)!
  1. Scatter plot type
  2. X and Y axes from table columns
  3. Color points by species

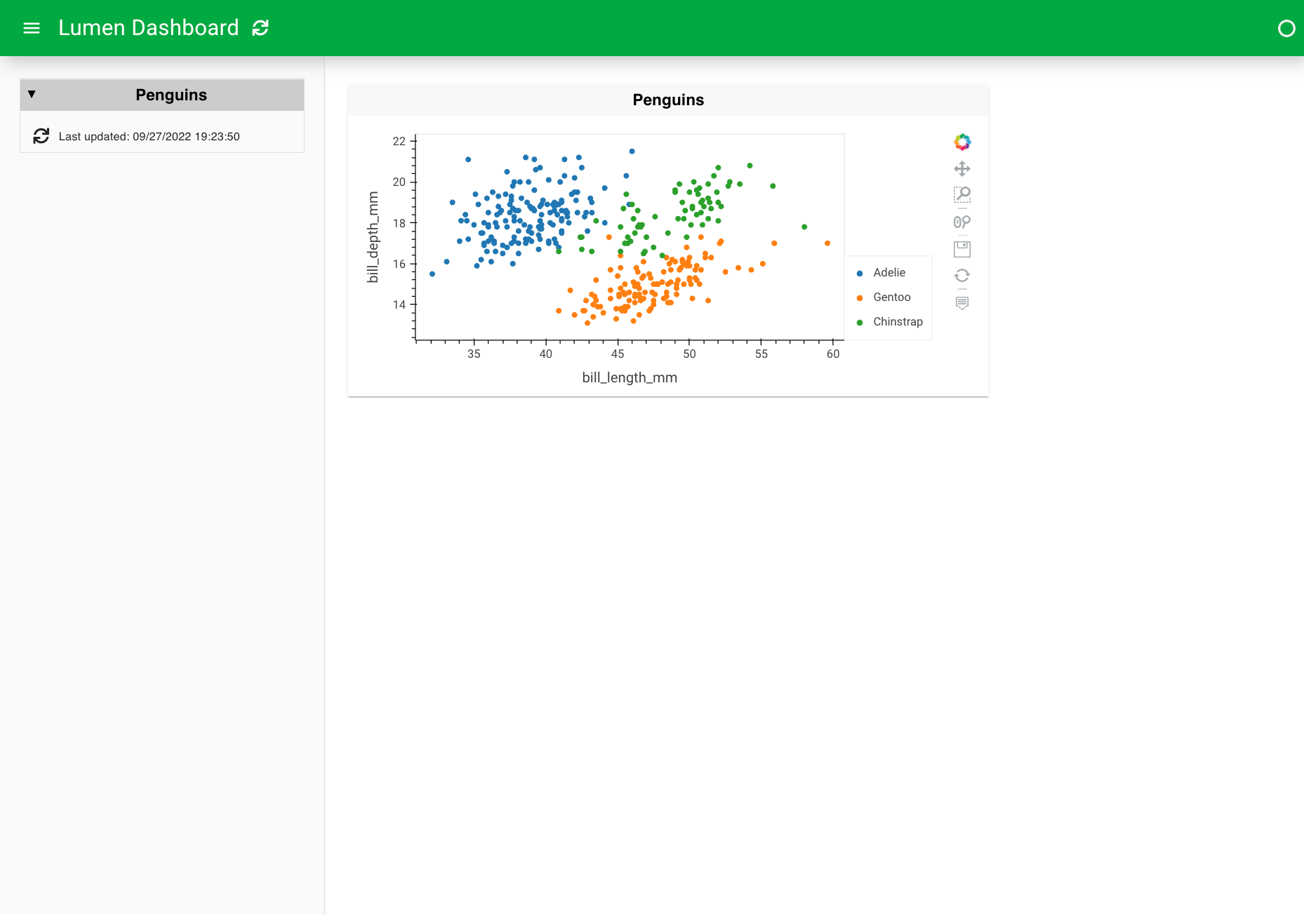

Scatter plot created

Now you see the relationship between bill length and depth, colored by species.

Time: 6 minutes

6. Add filters and transforms

Add interactive filters and select columns:

penguins.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
sources:
  penguin_source:
    type: file
    tables:
      penguin_table: https://datasets.holoviz.org/penguins/v1/penguins.csv

pipelines: # (1)!
  penguin_pipeline:
    source: penguin_source
    table: penguin_table
    filters: # (2)!
      - type: widget
        field: sex
      - type: widget
        field: island
    transforms: # (3)!
      - type: columns
        columns: ['species', 'island', 'sex', 'year',
                  'bill_length_mm', 'bill_depth_mm']

layouts:
  - title: Penguins
    pipeline: penguin_pipeline # (4)!
    views:
      - type: hvplot
        x: bill_length_mm
        y: bill_depth_mm
        kind: scatter
        color: species
  1. Pipelines connect sources to views with filters and transforms
  2. Widget filters create interactive dropdowns
  3. Column transform selects specific columns
  4. Reference pipeline instead of source

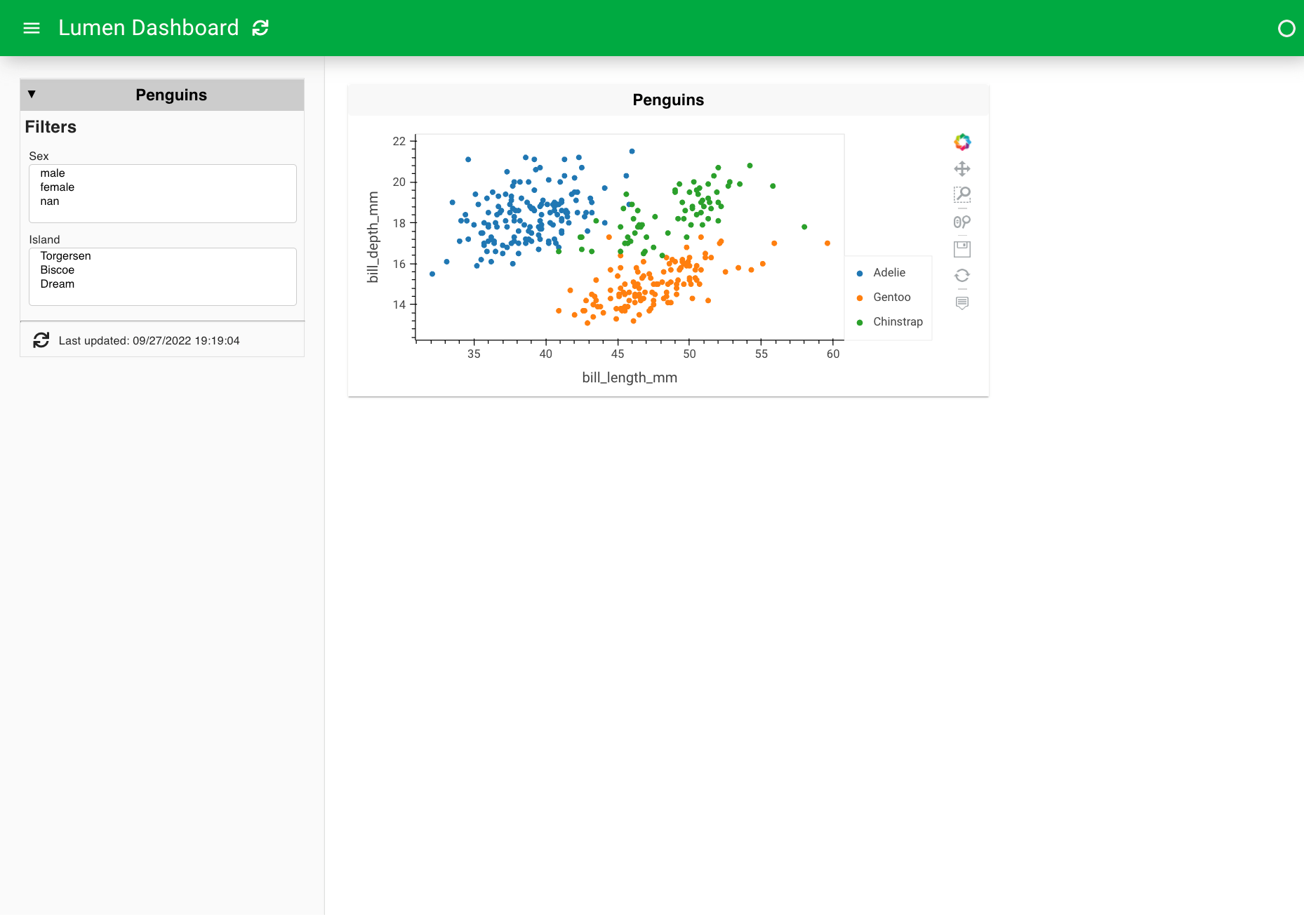

Filters and transforms added

Users can now filter by sex and island using sidebar widgets.

Time: 8 minutes

7. Add multiple views

Add histogram and table views:

penguins.yaml
sources:
  penguin_source:
    type: file
    tables:
      penguin_table: https://datasets.holoviz.org/penguins/v1/penguins.csv

pipelines:
  penguin_pipeline:
    source: penguin_source
    table: penguin_table
    filters:
      - type: widget
        field: sex
      - type: widget
        field: island
    transforms:
      - type: columns
        columns: ['species', 'island', 'sex', 'year',
                  'bill_length_mm', 'bill_depth_mm']

layouts:
  - title: Penguins
    pipeline: penguin_pipeline
    views:
      - type: hvplot
        x: bill_length_mm
        y: bill_depth_mm
        kind: scatter
        color: species
      - type: hvplot
        kind: hist
        y: bill_length_mm
      - type: table
        show_index: false

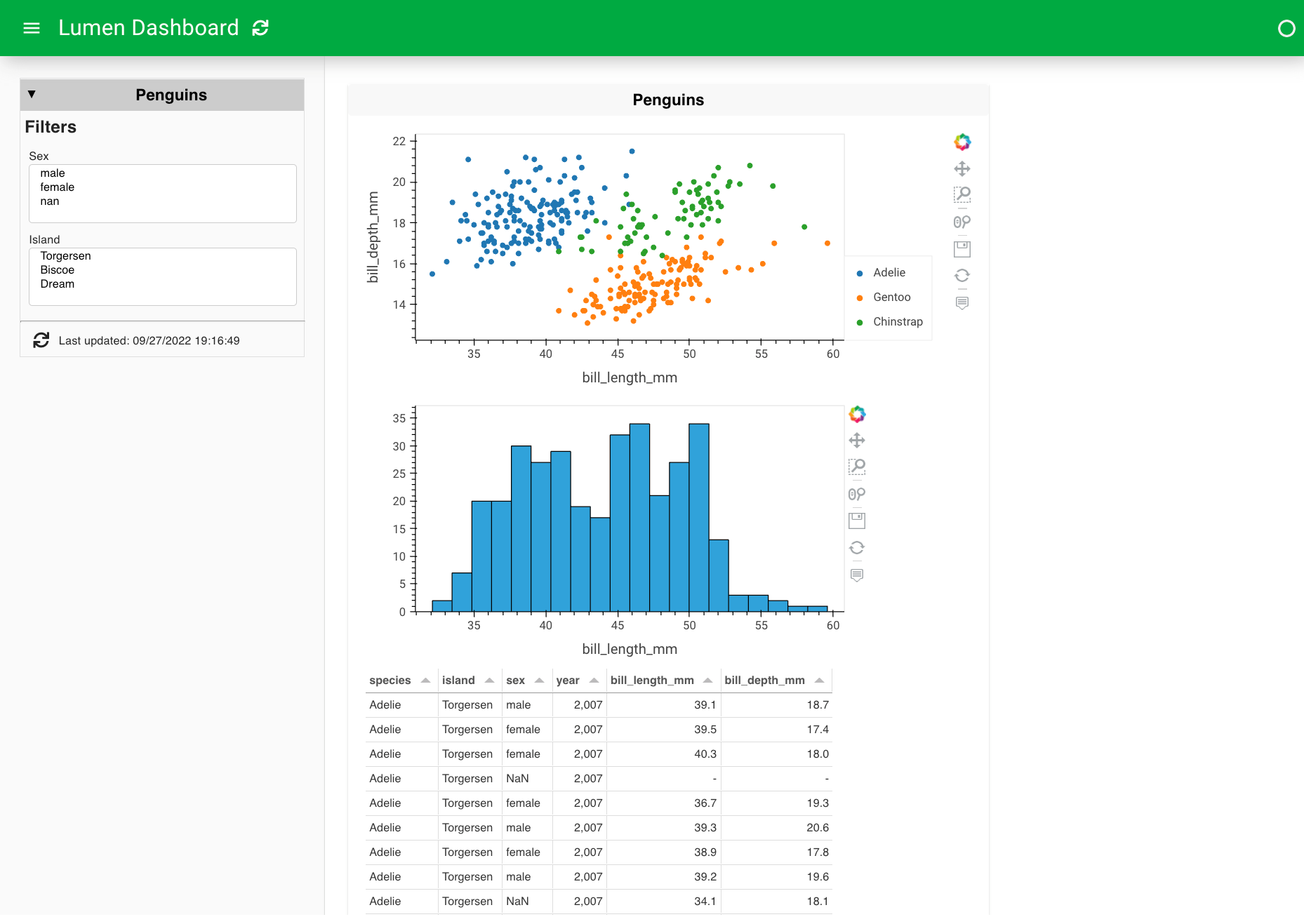

Multiple views added

All three views update when you change filters.

Time: 10 minutes

8. Improve the layout

Configure positioning and sizing:

penguins.yaml
sources:
  penguin_source:
    type: file
    tables:
      penguin_table: https://datasets.holoviz.org/penguins/v1/penguins.csv

pipelines:
  penguin_pipeline:
    source: penguin_source
    table: penguin_table
    filters:
      - type: widget
        field: sex
      - type: widget
        field: island
    transforms:
      - type: columns
        columns: ['species', 'island', 'sex', 'year',
                  'bill_length_mm', 'bill_depth_mm']

layouts:
  - title: Penguins
    pipeline: penguin_pipeline
    layout: [[0], [1, 2]] # (1)!
    sizing_mode: stretch_width # (2)!
    height: 800
    views:
      - type: hvplot
        x: bill_length_mm
        y: bill_depth_mm
        kind: scatter
        color: species
        responsive: true # (3)!
        height: 400
      - type: hvplot
        kind: hist
        y: bill_length_mm
        responsive: true
        height: 300
      - type: table
        show_index: false
        height: 300
  1. Scatter on top row, histogram and table side-by-side on bottom
  2. Views expand to fill width
  3. Plots resize with browser window

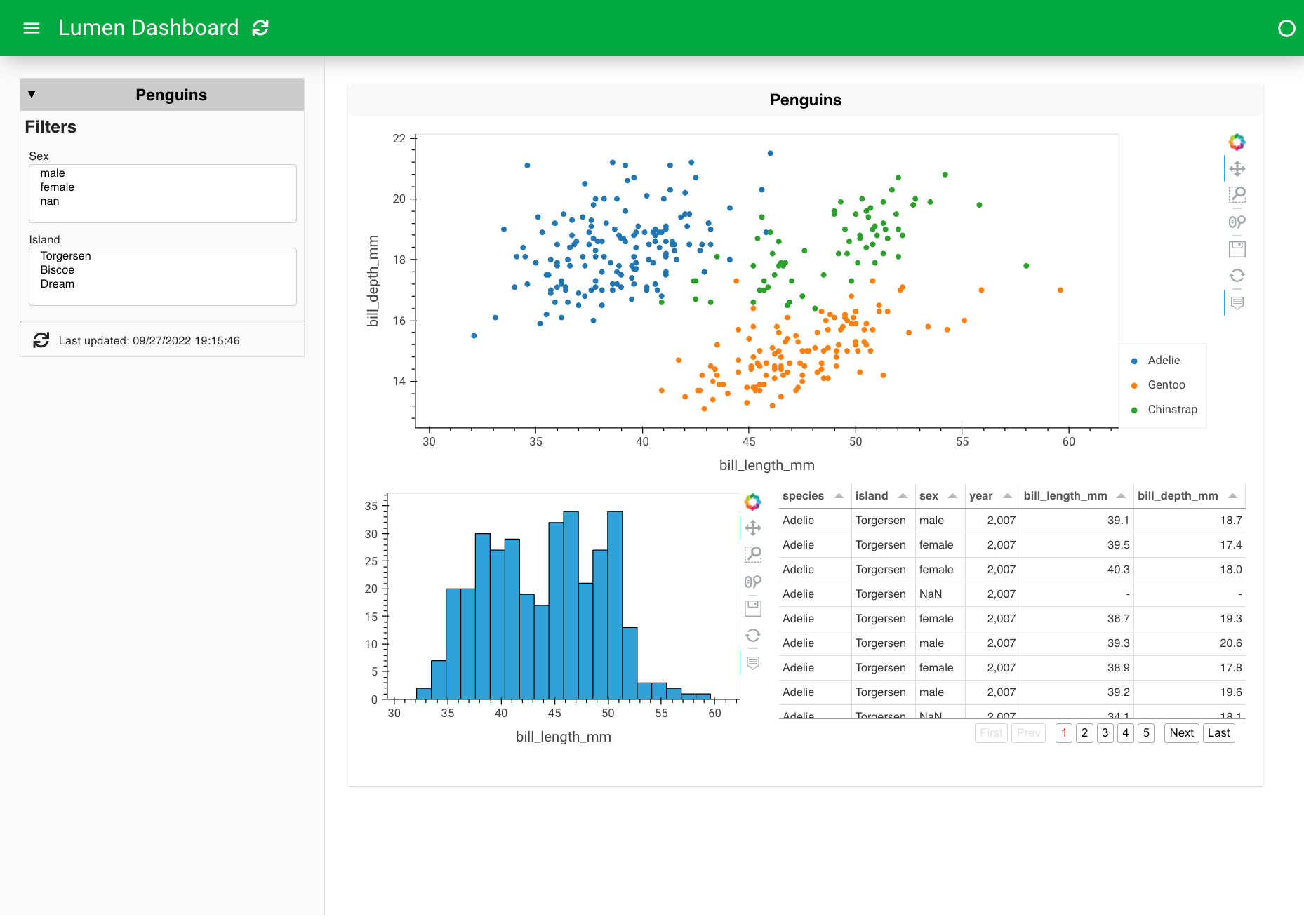

Layout customized

Time: 12 minutes

9. Add title and theme

Final polish:

penguins.yaml
config:
  title: Palmer Penguins
  theme: dark # (1)!

sources:
  penguin_source:
    type: file
    tables:
      penguin_table: https://datasets.holoviz.org/penguins/v1/penguins.csv

pipelines:
  penguin_pipeline:
    source: penguin_source
    table: penguin_table
    filters:
      - type: widget
        field: sex
      - type: widget
        field: island
    transforms:
      - type: columns
        columns: ['species', 'island', 'sex', 'year',
                  'bill_length_mm', 'bill_depth_mm']

layouts:
  - title: Penguins
    pipeline: penguin_pipeline
    layout: [[0], [1, 2]]
    sizing_mode: stretch_width
    height: 800
    views:
      - type: hvplot
        x: bill_length_mm
        y: bill_depth_mm
        kind: scatter
        color: species
        responsive: true
        height: 400
      - type: hvplot
        kind: hist
        y: bill_length_mm
        responsive: true
        height: 300
      - type: table
        show_index: false
        height: 300
        theme: midnight
  1. Dark theme for the entire dashboard

Final dashboard

🎉 Done! You've built a complete interactive dashboard.

Total time: 15 minutes

What you learned

  • Create YAML specifications
  • Load data from remote sources
  • Add interactive filters
  • Create multiple visualization types
  • Configure responsive layouts
  • Apply themes and styling

Next steps

Learn the system:

Try these challenges:

  • 📊 Replace histogram with box plot (kind: box)
  • 🎨 Color scatter by different field
  • 🔍 Add year filter
  • 📥 Enable downloads (see Downloads guide)
